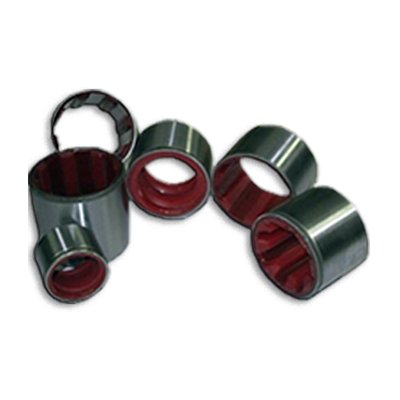

Metal Cover PU (Polyurethane) Bush
Established second manufacturing unit dedicated to Metal Cover PU Bushes. Highly effective in
terms of load bearing, abrasion and impact resistance for Motors & Pumps particularly in sandy
areas. RAW PU material imported directly from leading chemical manufacturers based in EUROPE
and USA, this helps in maintaining the quality of the product thoroughly.
Benefits:
- High Load bearing capacity
- Low water absorption ratio
- Resistance to Water, Oil & Grease
- High tear resistance
- Strong bonding properties
- Flexibility
- Abrasion and impact resistance
Product Sizes
All Sizes In mm
I.D. & O.D. Ground
| ID X OD X Length |
ID X OD X Length |
ID X OD X Length |
| 18 To 20 x 25 x 15 |
27 To 28 X 38 X 20 |
35 To 38 X 48 X 40 |
| 18 To 20 X 26 X 13 |
20 To 26 X 38 X 24 |
38 To 40 X 50 X 20 |
| 17 To 20 X 26 X 15 |
27 To 28 X 38 X 24 |
35 To 38 X 50 X 25 |
| 18 To 21 X 26 X 18 |
27 To 29 X 38 X 40 |
35 To 38 X 50 X 30 |
| 18 To 21 X 27 X 18 |
27 To 30 X 40 X 20 |
35 To 38 X 50 X 35 |
| 18 To 20 X 28 X 14 |
27 To 30 X 40 X 25 |
35 To 38 X 50 X 40 |
| 18 To 20 X 28 X 18 |
27 To 30 X 40 X 30 |
35 To 38 X 50 X 50 |
| 18 To 20 X 28 X 20 |
27 To 30 X 40 X 40 |
35 To 38 X 50 X 50 |
| 18 To 20 X 28 X 20 |
27 To 30 X 40 X 40 |
38 To 40 X 50 X 55 |
| 18 To 20 X 28 X 22 |
31 To 32 X 42 X 15 |
30 To 32 X 52 X 35 |
| 18 To 21 X 30 X 14 |
30 To 32 X 42 X 18 |
34 To 36 X 52 X 35 |
| 18 To 21 X 30 X 18 |
27 To 30 X 42 X 20 |
40 To 45 X 54 X 50 |
| 18 To 21 X 30 X 20 |
27 To 30 X 42 X 25 |
45 x 55 x 25 |
| 20 To 25 X 32 X 20 |
27 To 32 X 42 X 30 |
45 X 55 X 30 |
| 20 To 25 X 32 X 24 |
27 To 30 X 42 X 40 |
40 To 45 X 55 X 40 |
| 22 To 25 X 33 X 24 |
29 To 30 X 44 X 30 |
40 To 45 X 55 X 50 |
| 27 To 28 x 36 x 10 |
35 To 36 X 45 X 13 |
40 To 45 X 55 X 60 |
| 27 To 28 x 36 x 12 |
35 To 36 X 45 X 15 |
40 To 45 X 55 X 80 |
| 25 To 28 X 36 X 14 |
35 To 36 X 45 X 17 |
38 To 40 X 60 X 35 |
| 25 To 28 x 36 x 20 |
35 To 36 X 45 X 20 |
45 To 50 x 60 x 50 |
| 28 To 29 x 36 x 23 |
36 To 38 x 45 x 30 |
45 To 50 x 60 x 55 |
| 20 To 24.5 x 36 x 24 |
33 To 36 X 45 X 35 |
58 To 59 X 68 X 30 |
| 25 To 28 X 36 X 24 |
30 To 32 X 48 X 20 |
52 To 58 X 68 X 40 |
| 25 To 28 X 36 X 30 |
38 To 39 x 48 x 20 |
50 To 58 X 72 X 75 |
| 27 To 28 X 36 X 35 |
38 To 39 x 48 x 25 |
|
| 25 To 28 X 36 X 40 |
38 To 39 X 48 x 30 |
|
| 27 To 28 X 36 X 45 |
38 To 39 X 48 x 35 |
|
| 27 To 28 X 38 X 15 |
38 To 39 X 48 x 38 |
|
Collared Bush
| ID X OD X Length |
ID X OD X Length |
ID X OD X Length |
| 18 To 20 x 28 x 20 |
18 To 20 x 28 x 13.5 |
18 To 20 x 26 x 20 |
Rubber Collared Bush
| ID X OD X Length |
ID X OD X Length |
ID X OD X Length |
| 30 To 32 x 42 x 35 - Collar 7mm |
30 To 32 x 42 x 30 - Collar 5mm |
36 To 38 x 52 x 30 - Collar 5mm |
